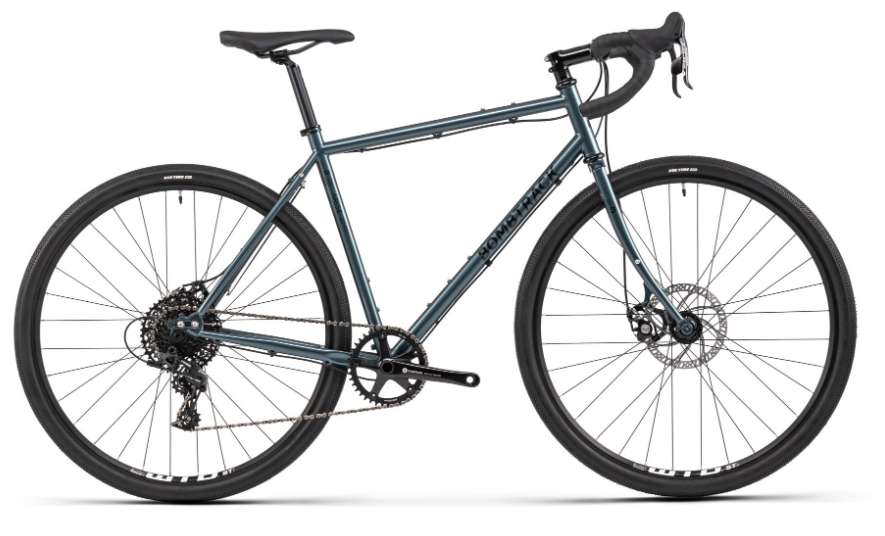

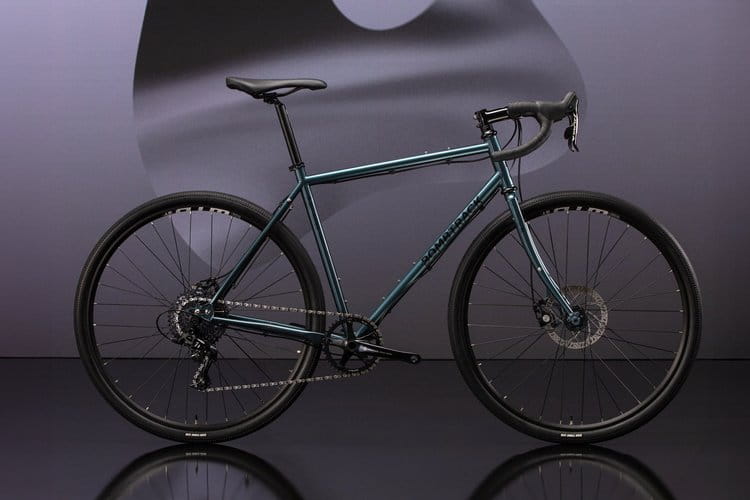

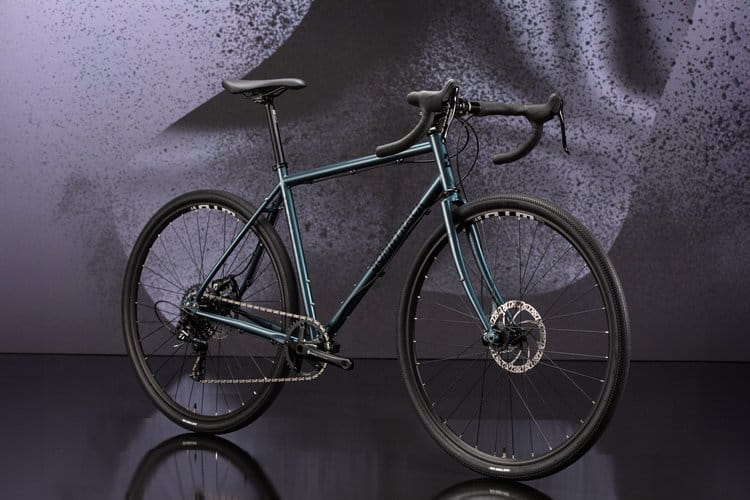

Rower gravel Bombtrack ARISE SG APEX metallic grey blue M/52cm
Cena regularna:
towar niedostępny
dodaj do przechowalni
0
Opis
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |

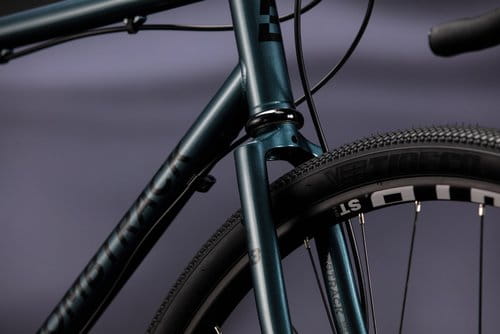

| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

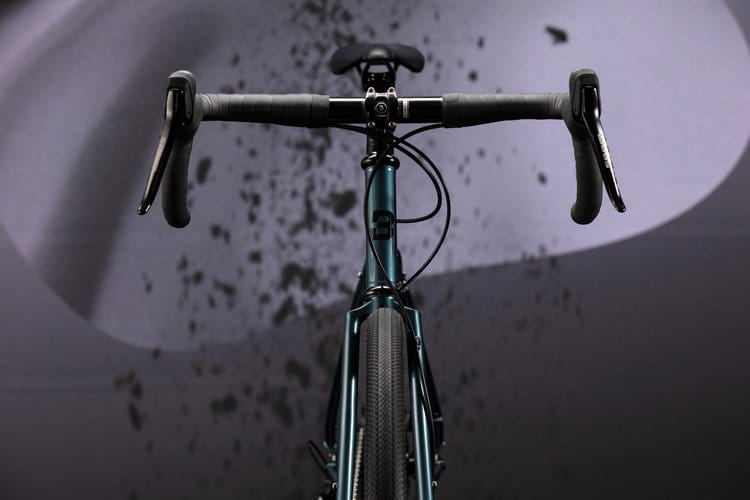

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Sram Apex double tap mechanic |
| Shifter | Sram Apex double tap 1 x 11 |
| Brakes | Tektro Mira post mount mechanic disc brakes |
| Rotor | Tektro 180 mm front and 160 mm rear rotor |
| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 40 T |
| Cassette | Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |

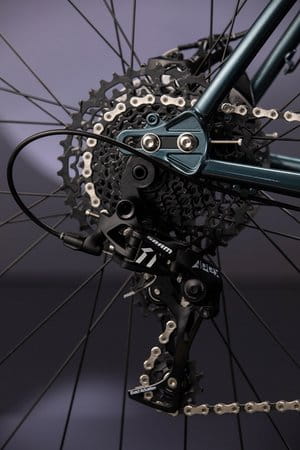

| Rear derailleur | Sram Apex 1, clutch, long cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Prime 29.8 mm |
| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | 12.25 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
FRAME GEOMETRY
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 700C | 700C | 700C |
| Seat Tube Length | 460 | 490 | 520 | 550 | 580 |
| Horizontal TT length | 506 | 529 | 554 | 578 | 602 |
| Seat Angle | 73.5° | 73.5° | 73° | 73° | 73° |
| Head Angle | 70° | 70.5° | 70.5° | 71° | 71° |
| Headtube Length | 100 | 130 | 150 | 180 | 210 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 420 | 420 | 435 | 435 | 435 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
| Trail | 64 | 60 | 68 | 65 | 65 |
| Wheelbase Length | 995 | 1016 | 1045 | 1065 | 1090 |
| Standover | 733 | 762 | 799 | 828 | 857 |
| Reach | 351 | 370 | 379 | 394 | 409 |
| Stack | 508 | 538 | 572 | 602 | 631 |
| Front Center | 582 | 602 | 619 | 639 | 664 |
| Axle to Crown | 390 | 390 | 390 | 390 | 390 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
